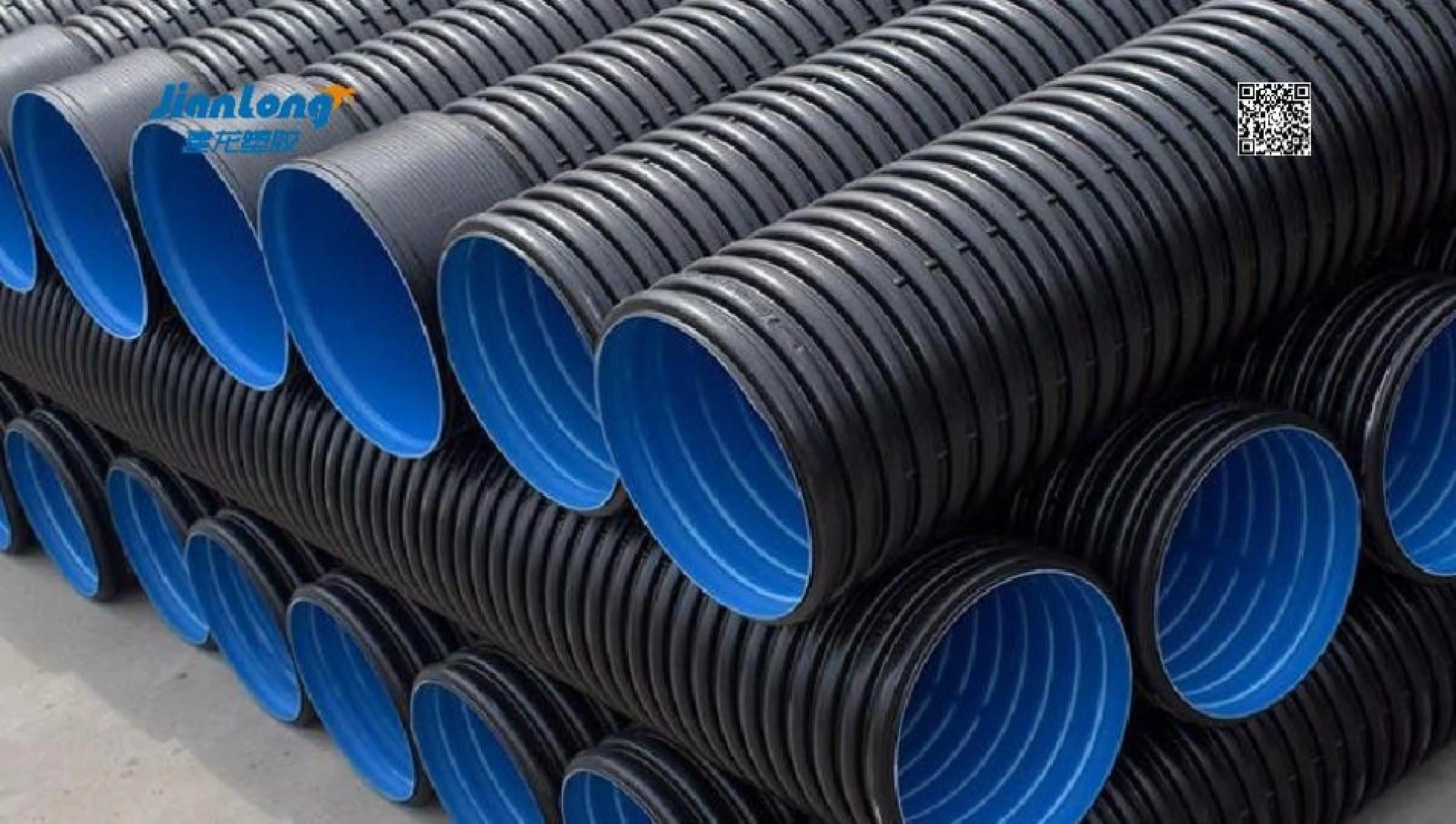

Jianlong HDPE Double-Wall Corrugated Pipe SN8 DN200-DN600 | For Municipal Drainage & Agricultural Irrigation

Jianlong HDPE Double-Wall Corrugated Pipe is independently R&D and produced by Shandong Jianlong Plastic Co., Ltd., . It is a high-performance pipe product meticulously crafted from 100% new HDPE raw materials. The product strictly prohibits the use of recycled materials, integrating high-quality materials, exquisite craftsmanship and efficient delivery services, providing reliable customized pipeline solutions for municipal engineering drainage, agricultural irrigation water conveyance, industrial medium transportation and other multi-field projects.

Brand: Jianlong
Usage: Water supply
Size: Customizable
Minimum Order Quantity: 1000 pieces
Payment Method: T/T
Delivery time: 10 - 30 working days
Port of Loading: Qingdao Port
Certificates: ISO 9001、ISO 14001、ISO 45001、NSF、CE、SGS

Inquiry

Write a Review

Product Introduction

Jianlong HDPE Double-Wall Corrugated Pipe is a high-performance piping product meticulously crafted from 100% new HDPE raw materials. The product strictly prohibits the use of recycled materials, integrating high-quality materials, exquisite craftsmanship and efficient delivery services. It provides reliable customized piping solutions for various projects such as municipal engineering drainage, agricultural irrigation water conveyance, and industrial medium transportation. As a preferred product in the field of non-pressure drainage and protection, Jianlong HDPE Double-Wall Corrugated Pipe is deeply favored by engineering contractors and project parties due to its excellent durability, superior environmental adaptability and high cost-effectiveness.

Jianlong HDPE Double-Wall Corrugated Pipe SN8 DN200-DN600 | For Municipal Drainage & Agricultural Irrigation 7

High-Quality Material

Made of high-density polyethylene (HDPE) with strong chemical stability, excellent toughness and high strength, resisting various chemical erosion for long-term durability.

Jianlong HDPE Double-Wall Corrugated Pipe SN8 DN200-DN600 | For Municipal Drainage & Agricultural Irrigation 8

Innovative Double-Wall Structure

Innovative "annular corrugated outer wall + smooth inner wall" design. Outer wall enhances pressure resistance for complex buried environments; smooth inner wall (roughness coefficient 0.009) ensures smooth water flow, ideal for municipal drainage and agricultural irrigation.

Excellent Temperature Resistance

Stable operation at -60℃~60℃, adapting to extreme climates (severe cold/high temperature) without performance degradation, ensuring stable use in different regions

Long Service Life

50-year service life under buried conditions (no UV exposure), reducing long-term operation and maintenance costs for municipal and agricultural projects.

Durable & Environmentally Adaptive

Resists soil corrosion, acid-base erosion and electrical interference, non-toxic and non-scaling. Flexible to adapt to slight ground settlement, impact-resistant to ensure pipeline integrity.

Reliable Sealing

Rubber seal ring connection ensures excellent water tightness. Lightweight HDPE for easy handling and fast installation, shortening construction period and reducing labor costs.

Eco-Friendly & Cost-Effective

Smooth inner wall reduces dredging costs; recyclable and eco-friendly. More cost-effective than concrete/cast iron pipes, saving raw materials with obvious price advantages.

Strict Quality Control& Flexible Specs

Strict quality control throughout production; each batch inspected before delivery. Customizable specifications (DN200mm-DN600mm and special sizes) for personalized project needs.

Product Parameters

Nominal Pressure

Specification	Outer Diameter	Length (m)	Remarks
Double-Wall Corrugated Pipe SN8 DN200	200*SN8	4	With rubber gasket included
Double-Wall Corrugated Pipe SN8 DN300	300*SN8	4	With rubber gasket included
Double-Wall Corrugated Pipe SN8 DN400	400*SN8	4	With rubber gasket included
Double-Wall Corrugated Pipe SN8 DN500	500*SN8	4	With rubber gasket included
Double-Wall Corrugated Pipe SN8 DN600	600*SN8	4	With rubber gasket included
Steel Belt Reinforced Corrugated Pipe SN8 DN200	200*SN8	4	With rubber gasket included
Steel Belt Reinforced Corrugated Pipe SN8 DN300	300*SN8	4	With rubber gasket included
Steel Belt Reinforced Corrugated Pipe SN8 DN400	400*SN8	4	With rubber gasket included
Steel Belt Reinforced Corrugated Pipe SN8 DN500	500*SN8	4	With rubber gasket included
Steel Belt Reinforced Corrugated Pipe SN8 DN600	500*SN8	4	With rubber gasket included

Specification (Average Outside Diameter)	Dn20mm～800mm(Customizable)
Color	Grey or determined through negotiation between both parties as required
Appearance	The inner and outer surfaces of the pipe are smooth and flat, free of defects that affect product performance such as scratches, dents, bubbles, and impurities. The end face of the pipe is cut flat and perpendicular to the axis.
Pressure Rating	0.63～2.5MPa
Connection Method	Adhesive Bonding, Elastomeric Sealing Ring Connection
Density/(kg/m³)	1350~1460
Vicat Softening Temperature/℃	≥80
Longitudinal Thermal Shrinkage Rate/%	≤5
Tensile Yield Stress/MPa	≥45
Elongation at Break/%	≥80
Light Transmittance/%	≤0.2
Falling Weight Impact Test TIR/%	≤5

product Application

Agricultural Engineering

Suitable for farmland irrigation, orchard drip irrigation, waterlogging drainage and other projects. It can resist the erosion of chemical fertilizers and pesticides, ensure the safety of irrigation water quality, and help improve agricultural production efficiency. It is a preferred HDPE double-wall corrugated pipe dedicated to agricultural irrigation.

Municipal Engineering

Used for municipal rainwater and sewage discharge, pipe network transformation and other projects. It can adapt to complex geological conditions such as collapsible loess, ensure the stable operation of the municipal drainage system, and improve the city's drainage and waterlogging prevention capacity.

Construction Engineering

Suitable for building drainage and underground pipe network laying. The excellent sealing and anti-leakage performance can adapt to the humid environment of the construction site and avoid water damage to the building structure.

Road Engineering

Used for subgrade drainage and green belt irrigation. It can bear the pressure of road construction and vehicle traffic, ensuring the stability of the subgrade and the normal growth of green plants.

Factory Strength

Direct Supply from Source

Factory-direct sales, no middleman markup. Support bulk purchasing & custom production, delivering cost-effective HDPE pipe solutions.

Quality Assurance

100% new HDPE raw materials, compliant with international standards. All batches pass pressure/impact tests with inspection reports.

Efficient Delivery

Full-spec in stock, fast order response & on-time delivery, matching municipal/irrigation project schedules.

Professional Services

One-on-one pre-sales consultation, reliable after-sales support for HDPE pipe installation & application.

What are the common specifications of Jianlong HDPE double-wall corrugated pipe for municipal drainage and agricultural irrigation?

Common inner diameter specifications of Jianlong HDPE double-wall corrugated pipe include DN200mm, DN300mm, DN400mm, DN500mm, DN600mm, etc. The conventional factory length is 6 meters, which can be customized according to the needs of municipal drainage, agricultural irrigation and other projects that use HDPE double-wall corrugated pipe.

What are the connection methods of Jianlong HDPE double-wall corrugated pipe for industrial and municipal use?

The most commonly used connection method for Jianlong HDPE double-wall corrugated pipe is socket-type rubber ring connection. One end is a socket with a sealed rubber ring, and the other end is a spigot. Insert the spigot into the socket to make the rubber ring elastically compress to form a seal. For large-scale municipal or industrial projects, heat shrinkable tape connection can also be adopted for Jianlong HDPE double-wall corrugated pipe according to engineering needs.

What should be noted during the installation of Jianlong HDPE double-wall corrugated pipe for agricultural irrigation and municipal drainage?

When installing Jianlong HDPE double-wall corrugated pipe for agricultural irrigation and municipal drainage, first, the spigot should be installed along the direction of water flow, and the socket should be against the direction of water flow. Second, the cut pipe mouth of the HDPE double-wall corrugated pipe should be vertical and flat. Third, before connection, the inner and outer surfaces of the socket and spigot of the Jianlong HDPE double-wall corrugated pipe should be cleaned, and the integrity and correct installation of the rubber ring should be checked. Fourth, the axis of the spigot must be aligned with the axis of the socket to avoid deviation, ensuring the stable operation of the HDPE double-wall corrugated pipe system.
